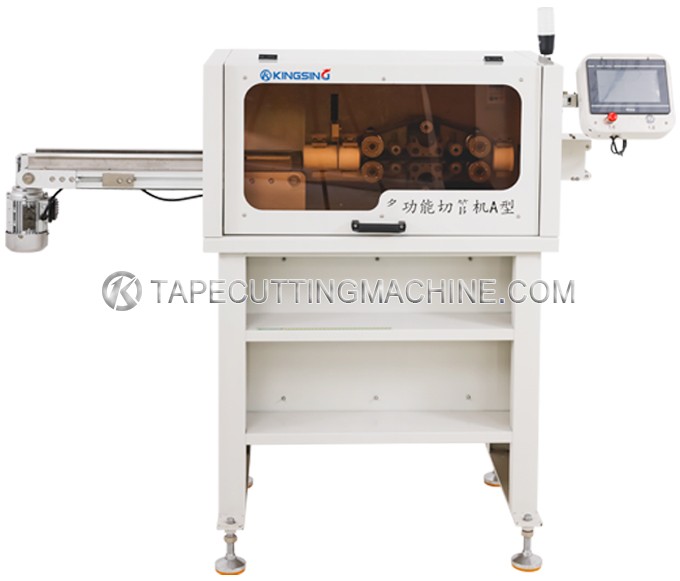

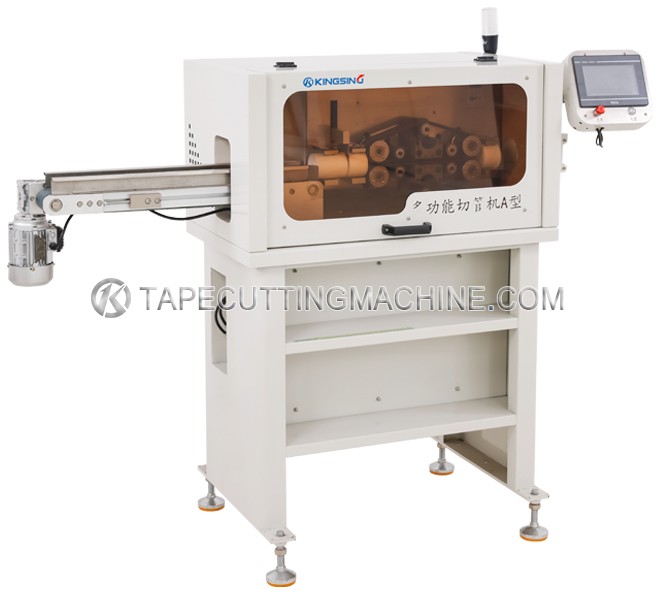

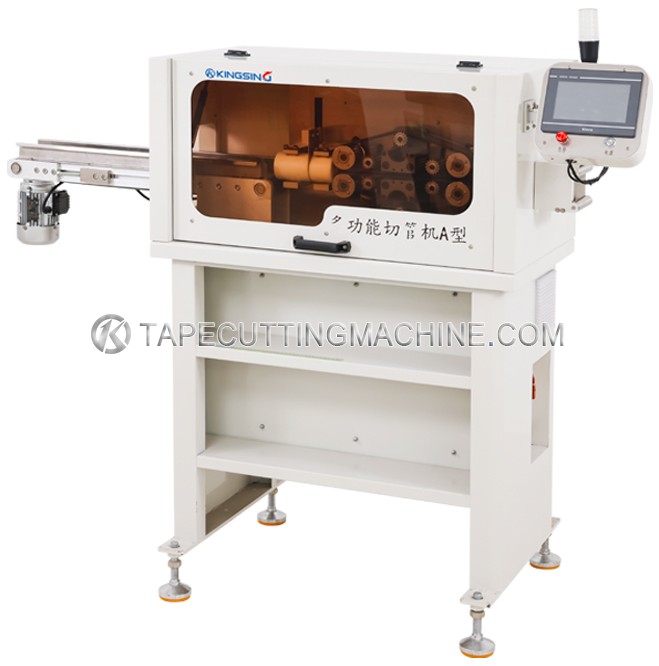

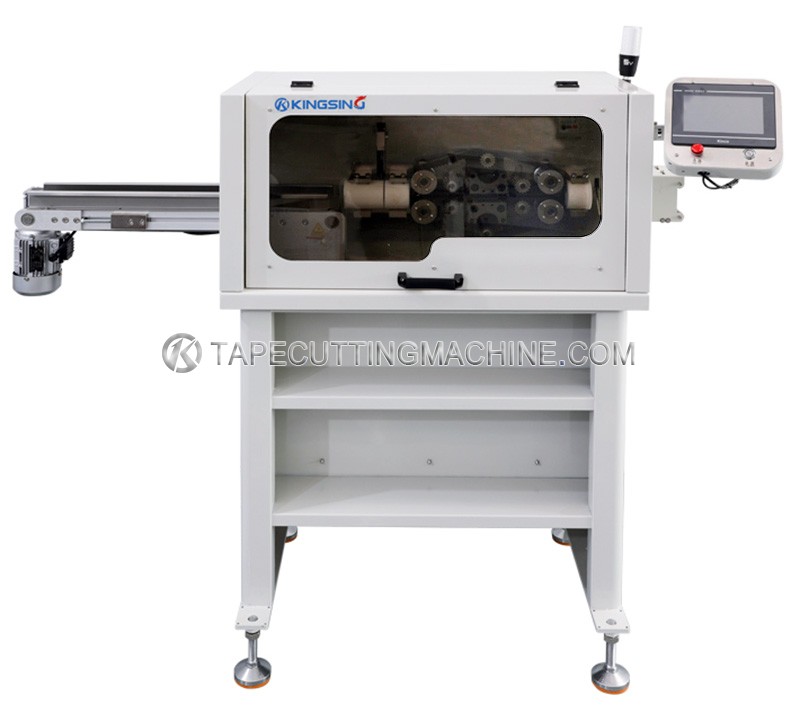

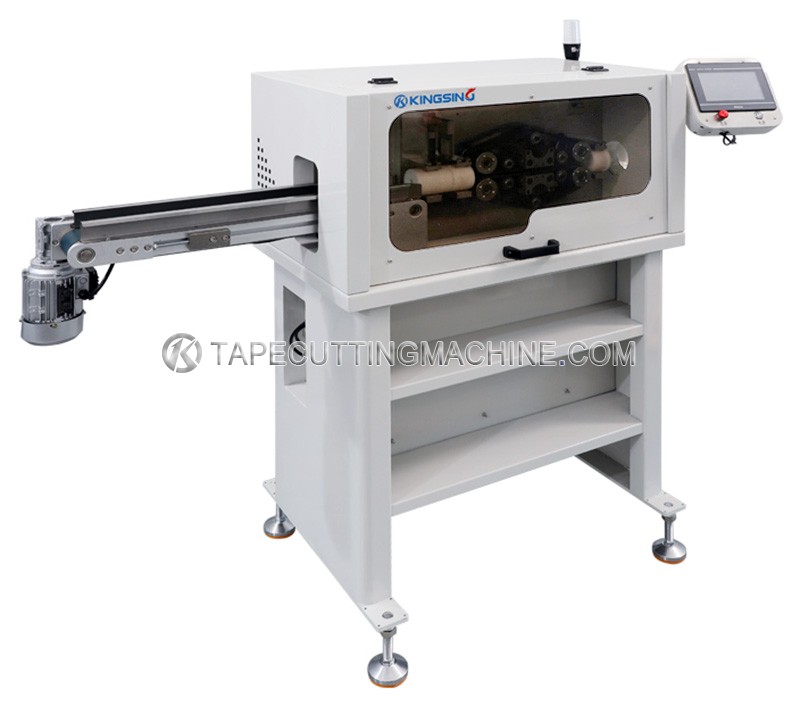

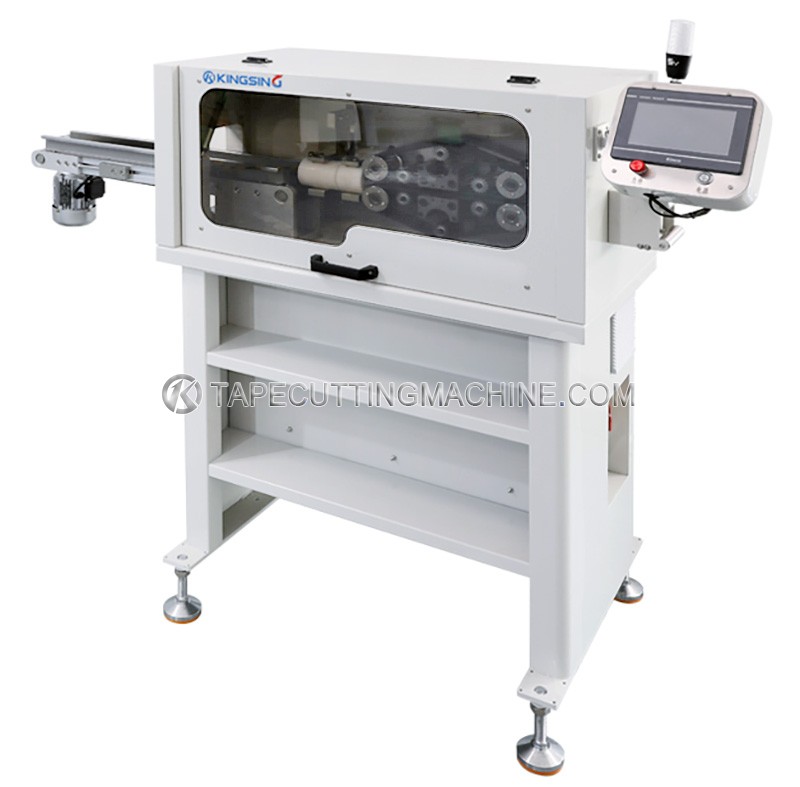

This is a heavy-duty flexible pipe cutting machine, suitable for cutting various hoses in the diameter range of 1-60mm, such as corrugated tubes, silicone pipes, air pipes, PU hoses, etc. The blade is driven by a strong cylinder, so it has enough power to cut hoses with big wall thickness.
It adopts belt feeding, because the contact area between the belt and the pipe is relatively large, which is beneficial to prevent the pipe from slipping during the feeding process, and can ensure good accuracy.
There is a built-in conveyor belt at the discharge port, which is convenient for discharging the finished product.
Cutting diameter: Ф1~Ф60mm
Length error: cutting length ±0.5+L*0.002mm
Speed: 20~40 pieces/minute (depending on the length)
Power supply: 220V 50~60Hz
Air pressure: 0.5~0.7Mp
Power: 1200W
Net weight: about 165KG
Dimension: 1600*700*1500mm (excluding protrusions)
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
