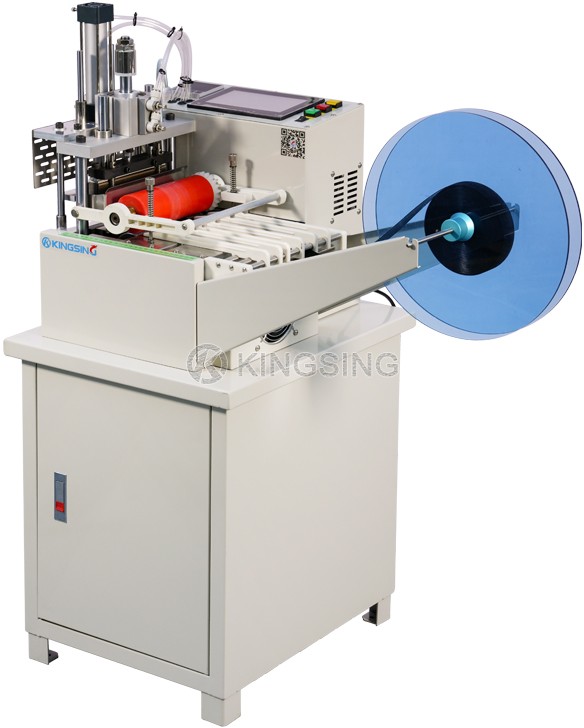

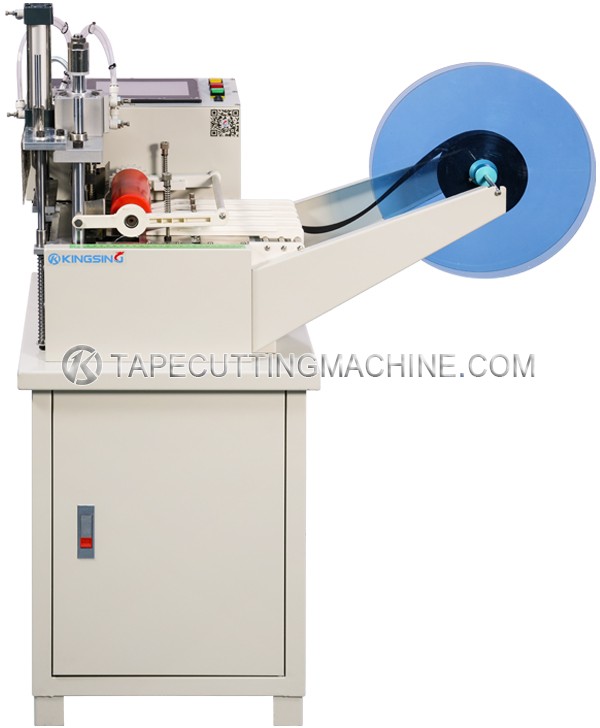

Heavy-duty Tape Cutting and Stacking Machine

  • Model：KS-140HQS
  • Blade Type：
  • Max. Width：
  • Net. Weight：
  • Dimension：
Online Inquiry

  1. This is a heavy-duty hot knife tape cutting machine, the blade is driven by a strong cylinder, so it's suitable for cutting thick materials, such as safety belt, backpack strap, etc.

  2. The machine has a built-in automatic stacking function, and the stacking data can be set in the program, so the specified number of finished tapes can be collected neatly into one bundle.

Download: (1) (2)

Knife Type：Hot knife

Cutter Driving Mode：Pneumatic

Cutting Width：Max.160mm

Cutting Length：1~99999mm

Rated Power：650W

Heating Temperature：0~350°C

Speed：60pcs/min (depends on the cutting length)

Operation Temperature：0~40°C

Power Supply：AC220V 50Hz

Environment Humidity：30%~ 80%RH (No condensation at 40°C)

Net Weight：70Kg

Dimension(LxWxH)：680x480x1200mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.


label: tape cutting machine hot knife tape cutting machine tape cutting and stacking machine
