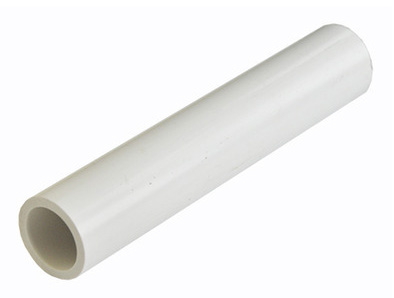

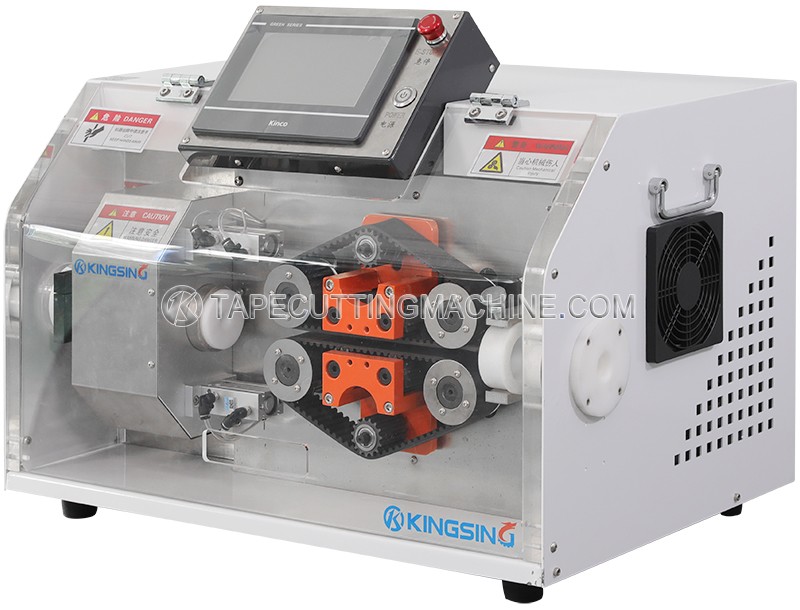

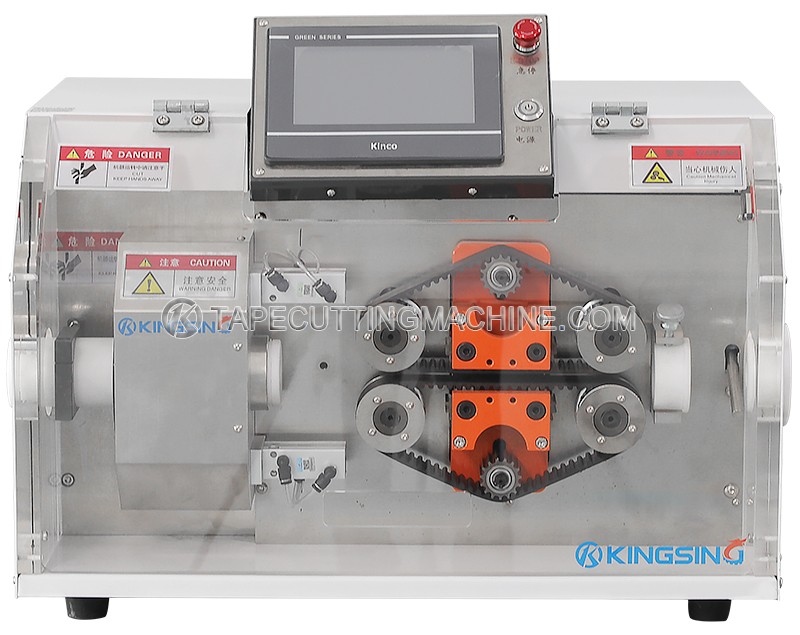

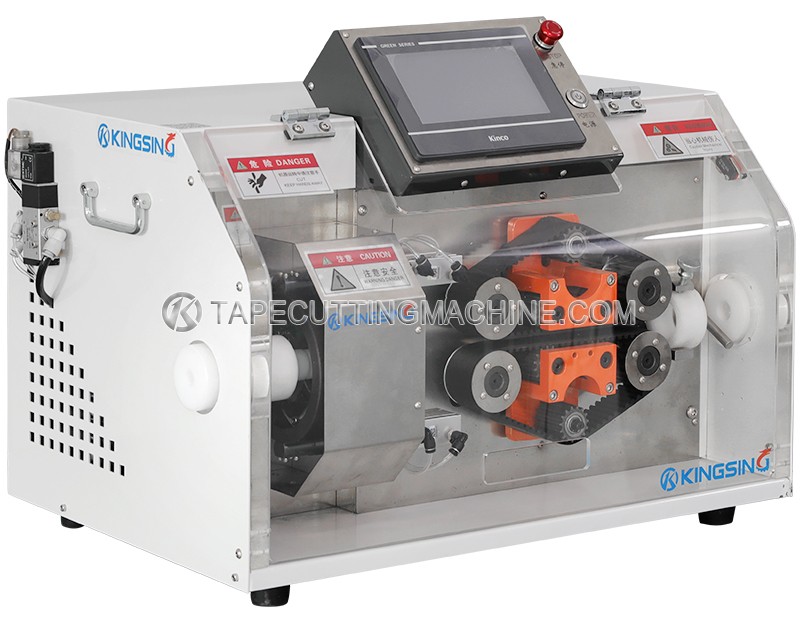

This machine is a rotary knife automatic pipe cutting machine, it is suitable for cutting PVC pipes with a certain hardness. The blade rotates around the pipe to cut it, this method can ensure that the nozzle will not be squeezed and deformed, and the incision will be smooth and neat.
It adopts belt feeding, since the contact area between the belt and the pipe is relatively large, which is beneficial to prevent the pipe from slipping during the feeding process, so it can ensure good feeding accuracy.
Tube Diameter: Ф5~42mm
Blade Type: rotary blade
Cutting Length: 0.1~9999.9mm
Cutting Accuracy: ±0.5+L×0.002mm(L=cutting length)
Speed: 60 pcs/min (Depends on cutting length)
Power Supply: 220V/50Hz
Power Rating: 500W
Air Pressure: 0.5~0.7Mpa
Net Weight: 70kg
Dimension(L×W×H): 540*560*570mm
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
