Nylon Braided Hose Cutting and Taping Machine

  • Model：KS-P914T
  • Blade Type：
  • Diameter：
  • Net. Weight：
  • Dimension：
Online Inquiry

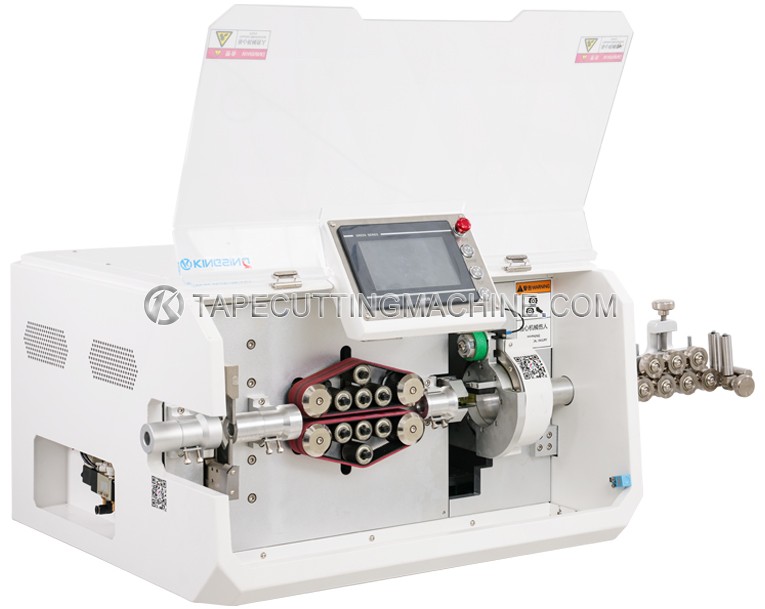

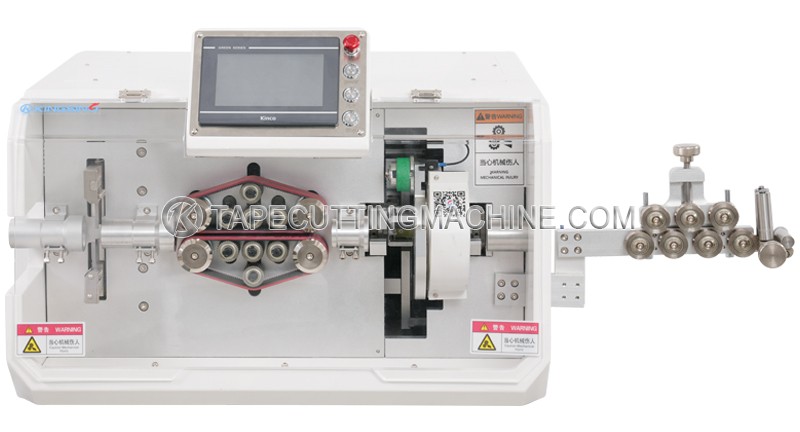

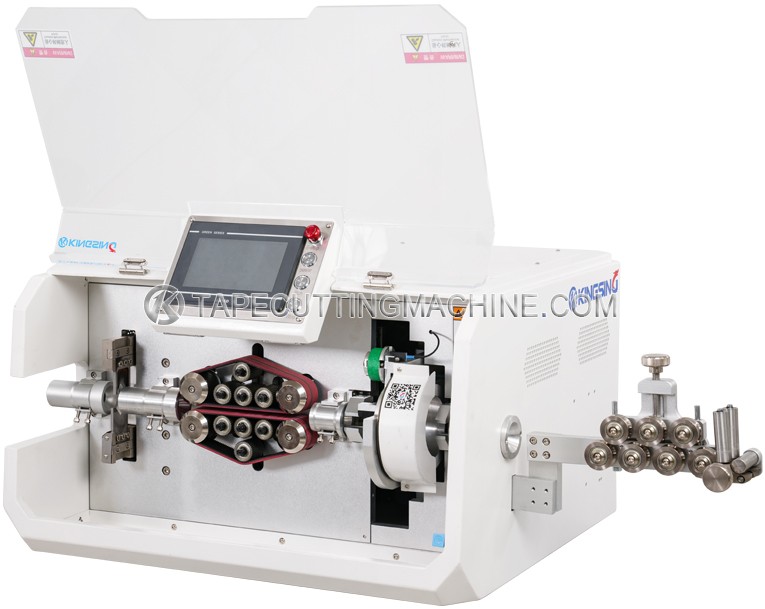

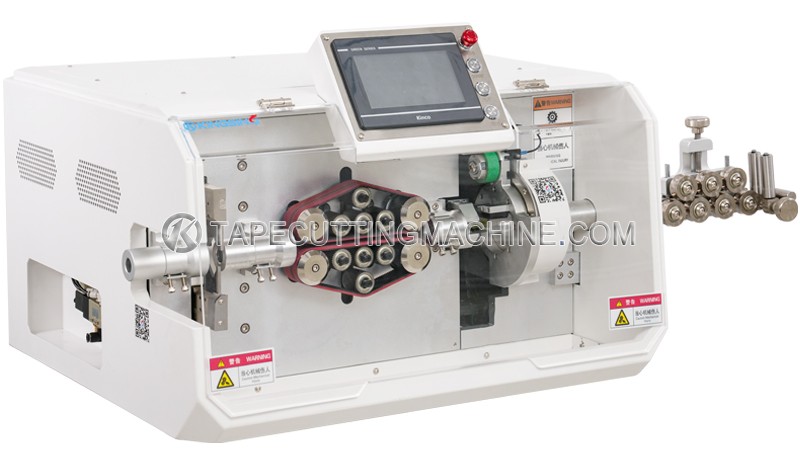

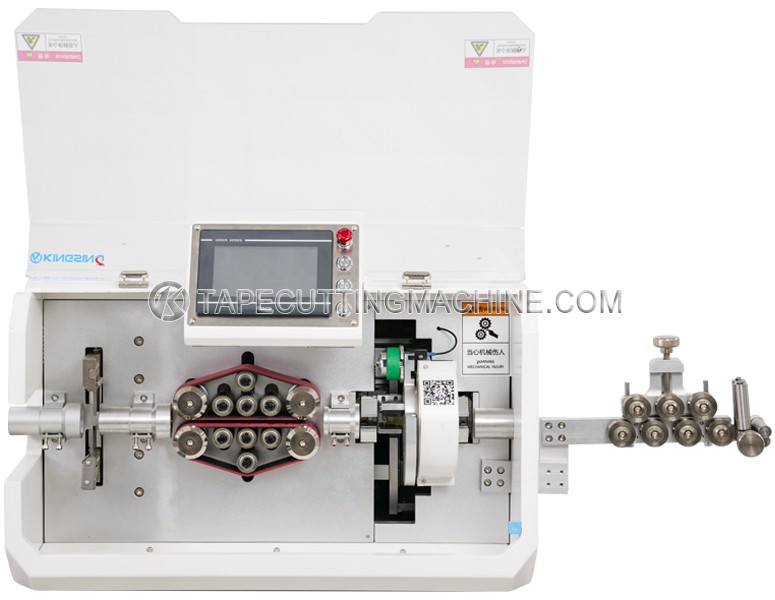

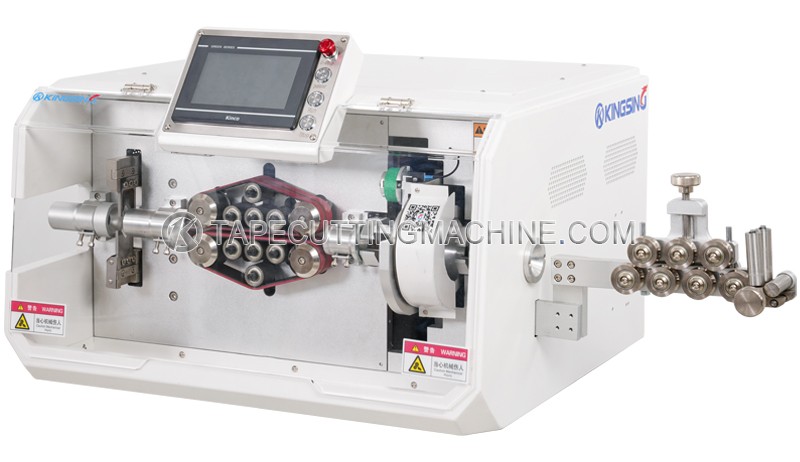

KS-P914T is an automatic nylon braided hose cutting and taping machine, it automatically tapes the cutouts at both ends to prevent the nylon braid from unraveling. The taping function can also be turned off in the program, then you can use this machine to cut normal flexible hoses, such as corrugated tubes, silicon tubes, etc. Color touch screen operation interface, all parameters are intuitive and easy to understand, just simply set the cutting length and quantity, the machine can work automatically.

Download: (1)

Pipe Diameter: Ф9~Ф20mm (depends on the pipe material)

Tape Specification: Width: Max.20mm; ID: Ф32~76mm; OD:110mm (customized)

Blade Type: Cold blade

Cutting Length: Max.1000m

Cutting Accuracy: ±0.5+L x 0.002mm (L=cutting length)

Speed: 600~800 pcs/hour (Depends on cutting length and wrapping turns)

Power Supply: 220V /50Hz

Power Rating: 1000W

Program Memory: Max.100 groups of programs

Air Pressure: 0.5~0.7MPa (Must be clean, dry and stable compressed air)

Dimensions(LxWxH): 870*760*600mm

Net Weight: 174Kg
