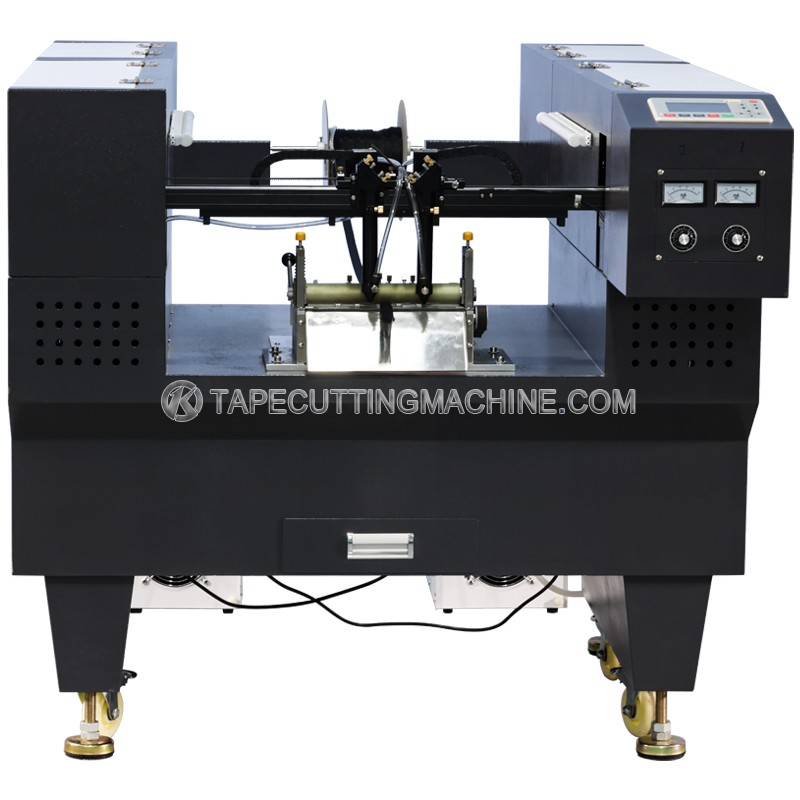

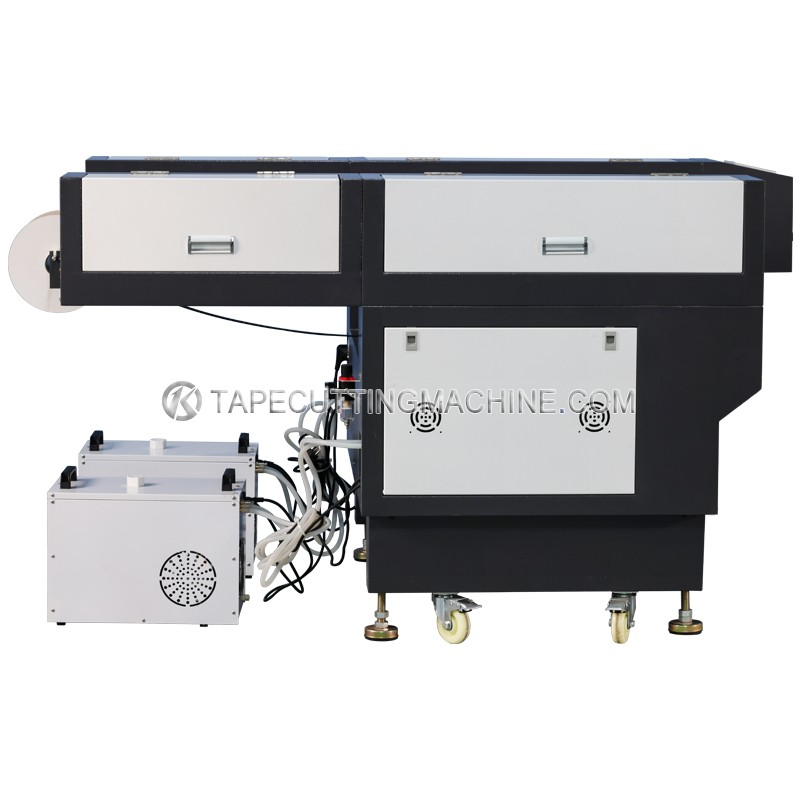

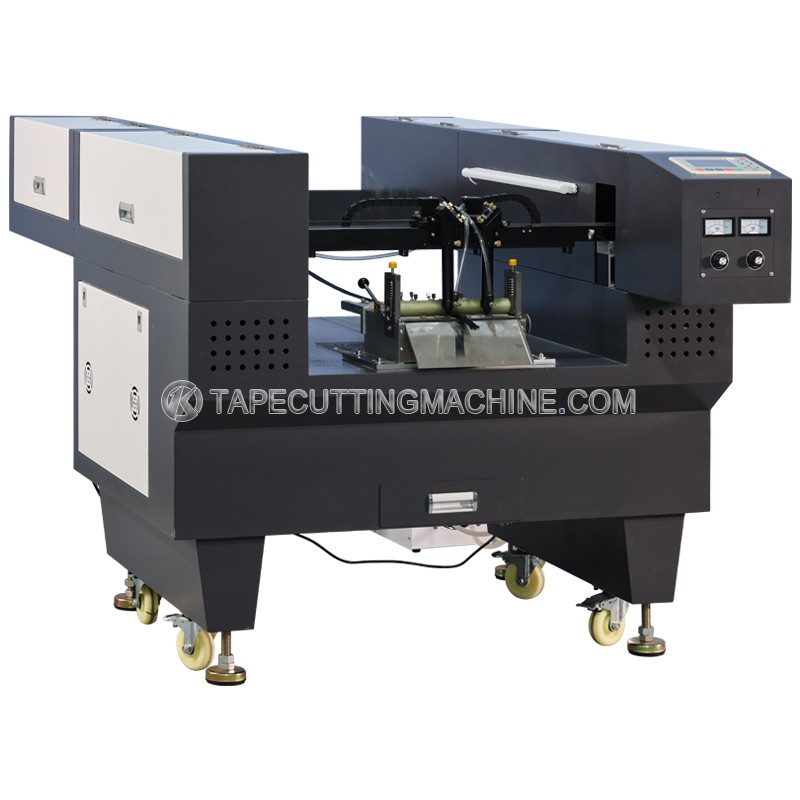

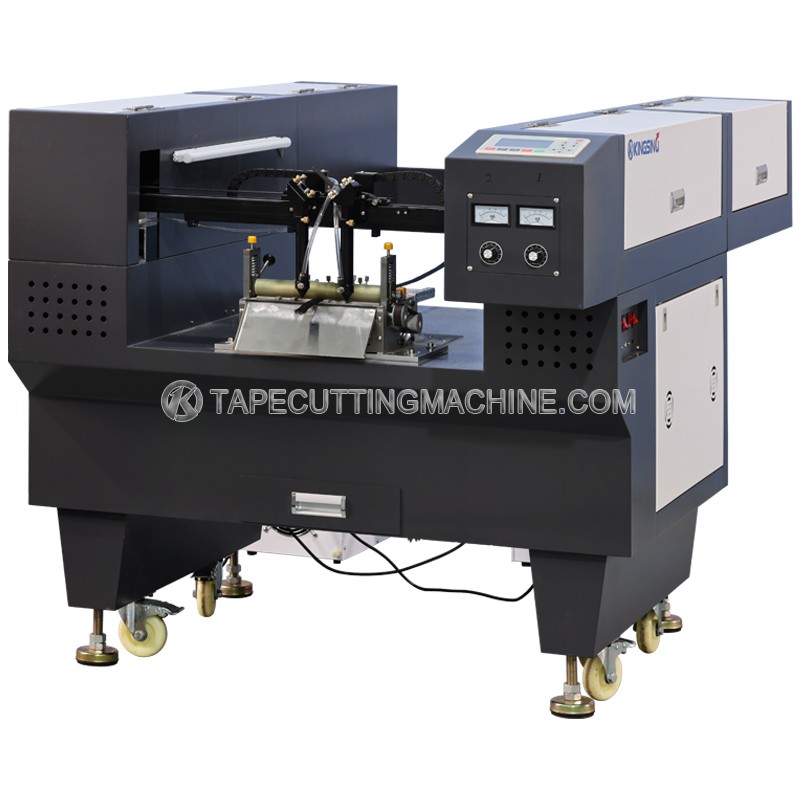

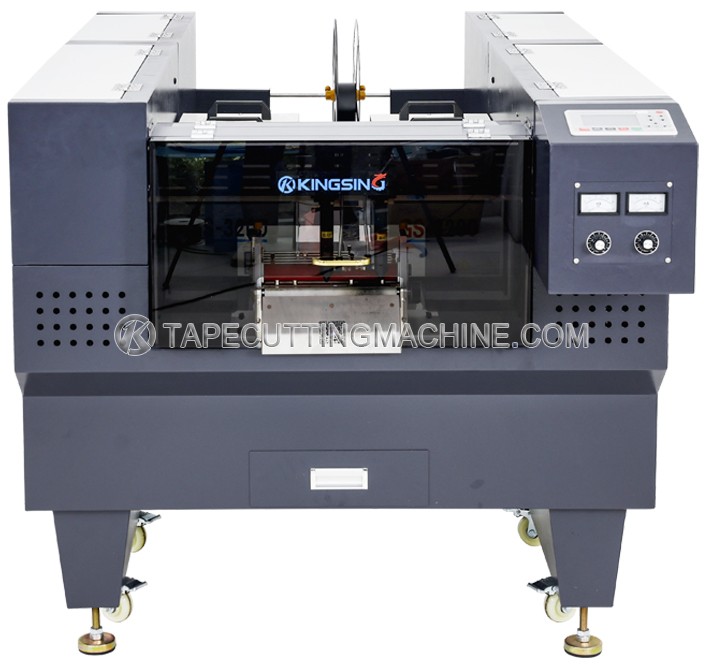

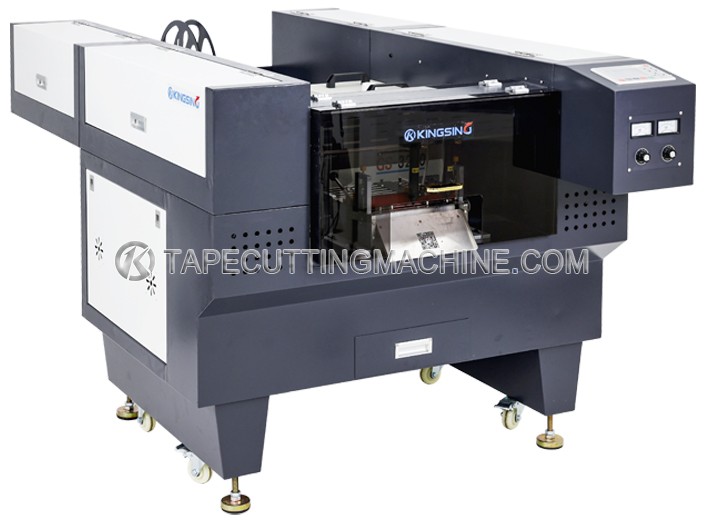

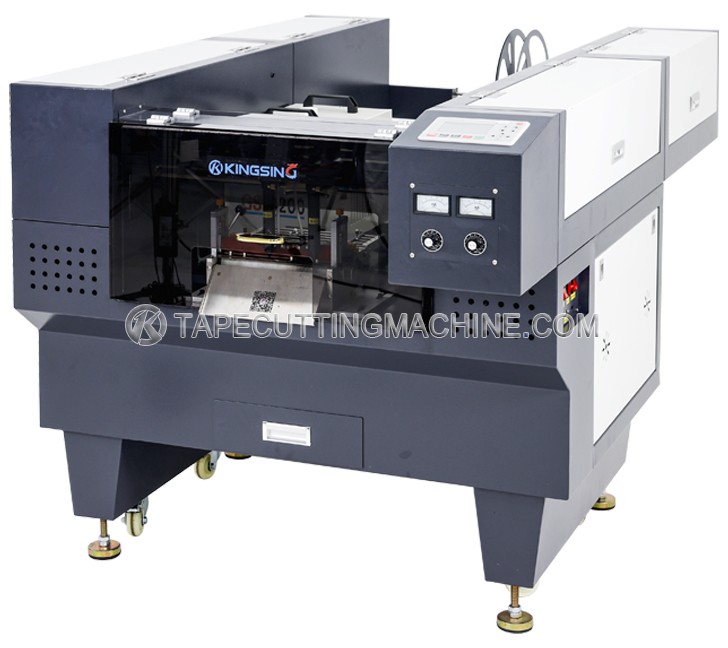

This machine is a fully automatic laser tape cutting machine, there are 2 laser heads built in the machine, which supports cutting 2 rolls of material at the same time. Its biggest advantage is that it can cut any shape. The shape of the cutting can be designed on a computer, you can switch between different cutting shapes with one key without changing any parts.
The edge sealing effect of laser cutting is better than that of hot knife, it will not cause the cutting edge become thick and hard, but keep the cutting edge is soft and smooth.
This machine has 2 built-in laser heads, which can cut 2 rolls of material at the same time.

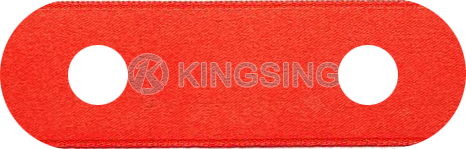

| Example 1 |  |

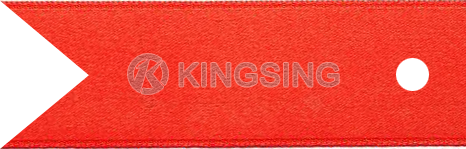

| Example 2 |  |

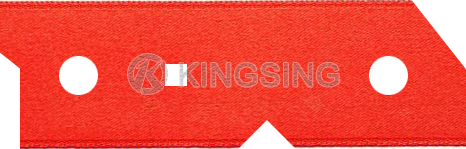

| Example 3 |  |

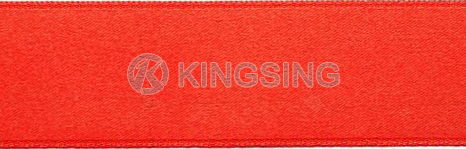

| Straight Cut |  |
Cutting Mode: Laser cutting
Laser Head Number: 2PCS
Laser Power: 102.3W*2
Laser Type: CO2 sealed glass tube laser
Laser Wavelength: 10.6μm
Cooling Mode: Circulating water-cooling
Laser Energy Control: 0~100%, 0.1% continuously adjustable
Positioning Accuracy: ±0.1mm
Control Panel: 4.3 inch color touch screen
Software: Laser CAD
Graph Format:G-code,Al,SVG,PDF,DXF,PLT,DSTDSB,UD5,BMPJIFJPG,PNG, etc.
Machine Power:1250W
Air Pressure: 0.2MPa
Power Supply: AC220V 50Hz
Operation Temperature: 0~40℃
Environment Humidity: 30%~80%RH (No condensation at 40℃ )
Net Weight: 320Kg
Dimension(LxWxH): 1970x1240x1140mm
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
