Cold Knife Cutting Machine

  • Model：KS-B100C
  • Blade Type：Cold Knife
  • Max. Width：100mm
  • Net. Weight：34kg
  • Dimension：415×380×410mm
Online Inquiry

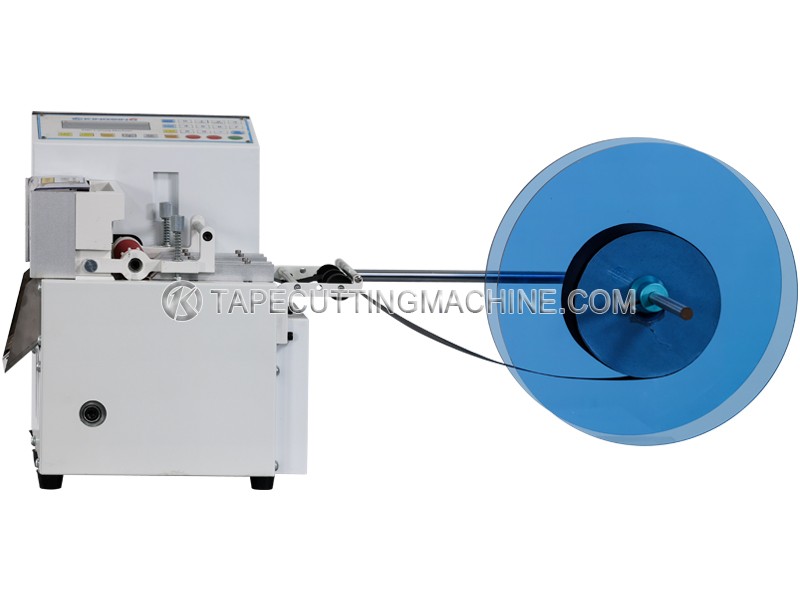

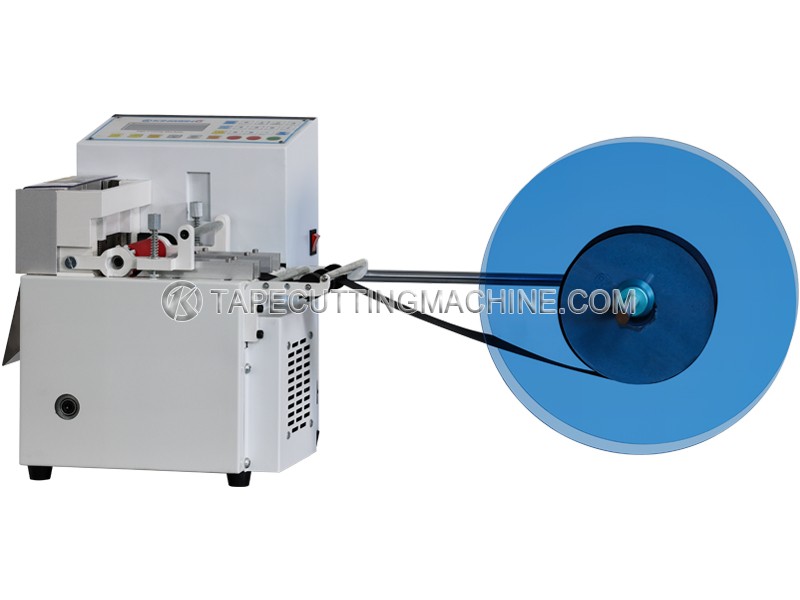

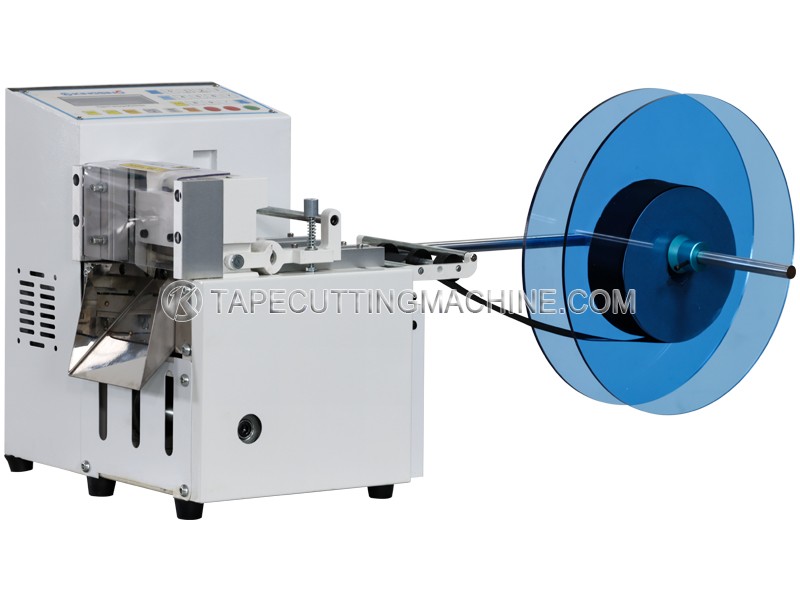

Automatic Belt Cutting Machine KS-B100C is a belt cutting machine controlled by program with high-resolution display screen. Multiple types of belts are available to be processed in this machine, such as flat ribbon cable, copper sheet, flexible tubes, braided copper wire and etc. Belt feeding speed, length and cutting times can be adjusted, besides, total quantity and batch completion reminding function is a splendid feature as well. Parameters have set in system can be saved automatically and permanently. Belt feeding is driven by stepping motor which has high reliability and durability.

Applicable Material: Flat ribbon cable, copper sheet, flexible tubes, braided copper wire, etc.

Cutting Speed: 1800-4800 pcs/h (Changed according to cutting length)

Cutting Length: 0.1-9999.99mm

Cutting Width: Max.100mm

Power Rating: 180W

Cutter Type: Cold knife

Power Supply: AC 220V 50HZ

Weight: 35Kg

Dimension(L*W*H): 780*380*460mm

label: tape cutting machine cold knife tape cutting machine
